The sample script provided in this blog showcases a number of the message boxes available in Legato. In the blog itself, we’ll focus more on how message boxes work and the types of message boxes you can use.

Our Sample Script:

int         rc;
int         remember;
string      text;

int main() {

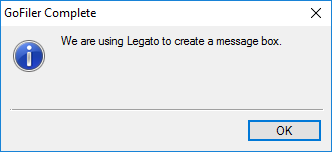

    rc = MessageBox('i', "We are using Legato to create a message box.");

    if (rc == IDOK) {
      MessageBox('i', "You pressed OK.");
      }

    if (rc == IDCANCEL) {
      MessageBox('i', "You pressed the X.");
      }

    rc = YesNoRememberBox("Do you want to continue?");
    remember = GetLastError();
    if (rc == IDNO) {
      text = "Okay, we'll stop now!";
      if (remember != 0) {
        text += " You wanted to remember this.";
        }
      MessageBox('x', text);
      }
    if (rc == IDYES) {
      text = "Good Answer.";
      if (remember != 0) {
        text += " You wanted to remember this.";
        }
      MessageBox(text);
      }
    if (rc == IDCANCEL) {
      MessageBox('x', "Operation cancelled!");
      return rc;
      }
    return ERROR_NONE;
    }

The Legato MessageBox SDK function displays a message box. Each message box works the same basic way. The function returns an int value containing an error code or standard Windows ID code, which corresponds to the choice the user made. The most common return codes are standard defines in Legato: IDOK, IDYES, IDNO, and IDCANCEL. These let you quickly and easily determine what the user’s response to your message box was. If the user pressed the “no” button, then the response back will be IDNO. If they closed the box by clicking the X in the upper right corner, the response will be IDCANCEL. If they click a cancel button, the response will also be IDCANCEL.

Depending on the type of message box, you may be able to define a character that represents what icon shows up in the upper left of the box. In the MessageBox function, for example, the first parameter takes either an integer or a character that defines what type of icon you’d like in the top left. The acceptable values are:

You may also want to remember the user’s input to avoid asking them again. Functions that support this will have the suffix “Remember” in their name. For these functions, the value of the checkbox will be stored as the last error. You can access that error by using the GetLastError function. So, to get the value of a checkbox, the code would look like this:

    rc = YesNoRememberBox("Do you want to continue?");
    remember = GetLastError();

Remember that you need to use the GetLastError function immediately after your message box function call to avoid accidentally overwriting the last error with a subsequent function’s error value. The returned value from the remember boxes also uses the IDYES to signify that the box was checked. To test for it, you need to check if the variable remember was set to IDYES. You can store this value in an INI file using the PutSetting function. Note that this function will not remember if a user cancelled the message box by clicking the X button.

This is a list of all of the types of message box functions offered by Legato:

In summary, message boxes are a very easy way to add some quick UI to your script. Legato is capable of more complicated custom dialog boxes as well, but that is a topic that will be covered in a different blog post.
